Pipe fittings are essential components in any plumbing or piping system, playing a crucial role in connecting pipes, regulating flow, and ensuring the overall efficiency and functionality of the system. These small but vital elements come in a wide variety of types, each designed to serve specific purposes within the complex network of pipes that form the backbone of numerous industrial and residential applications.
At its core, a pipe fitting is a component used to join pipe sections, modify the direction of flow, adapt pipes of different sizes or shapes, and regulate or stop the flow of liquids, gases, or slurries through a piping system. The importance of pipe fittings cannot be overstated, as they are fundamental to the integrity and performance of piping networks across various industries, including petroleum, chemical, power generation, and construction.
The world of pipe fittings is remarkably diverse, encompassing a vast array of shapes, sizes, and materials. From the common elbow and tee fittings to more specialized reducers and caps, each type of fitting is engineered to address specific needs within a piping system. This diversity allows for incredible flexibility in system design and functionality, enabling engineers and plumbers to create complex networks that can efficiently transport fluids under a wide range of conditions.
As we delve deeper into the world of pipe fittings, we will explore the various types, their specific functions, and the critical role they play in different industrial applications. Understanding these different types of pipe fittings is essential for anyone involved in the design, installation, or maintenance of piping systems, as it ensures the selection of the most appropriate components for each unique application, ultimately leading to safer, more efficient, and more reliable systems.
Pipe fittings serve several crucial purposes in piping systems, each contributing to the overall functionality, efficiency, and versatility of these networks. Understanding these functions is key to appreciating the importance of different types of pipe fittings. Let's explore the primary purposes and functions of pipe fittings:
One of the most fundamental functions of pipe fittings is to connect two or more pipes. This is essential for creating continuous pathways for fluids or gases to flow through. Fittings like couplings, unions, and adapters are specifically designed for this purpose, allowing pipes of similar or different materials, sizes, or threading standards to be securely joined together.
Pipe fittings play a crucial role in altering the direction of flow within a piping system. This is particularly important in complex piping layouts where fluids need to navigate around obstacles or reach specific destinations. Elbow fittings, such as the commonly used 45-degree and 90-degree elbows, are primary examples of fittings used to change flow direction.
In many piping systems, there's a need to transition between pipes of different diameters. This is where reducer fittings come into play. Reducers, which can be concentric or eccentric, allow for smooth transitions between pipes of different sizes, ensuring efficient flow and preventing turbulence or pressure drops.
Some pipe fittings are designed to control the flow of fluids or gases through the system. Valves, while often considered a separate category, are a type of fitting that can start, stop, or regulate flow. Other fittings like orifice plates can also be used to control flow rates in certain applications.
In some cases, there's a need to seal off the end of a pipe, either temporarily or permanently. Cap fittings and plug fittings serve this purpose, allowing for the termination of a pipe run or the closure of unused outlets in a piping system.
By fulfilling these various functions, pipe fittings enable the creation of complex, efficient, and adaptable piping systems. Whether it's in a small residential plumbing setup or a large industrial pipeline, these fittings work together to ensure that fluids and gases can be transported safely, efficiently, and in accordance with the specific requirements of each unique application.
Understanding these core functions provides a foundation for appreciating the diverse types of pipe fittings we'll explore in subsequent sections, and how each type is optimized for specific roles within a piping system.
The selection of materials for pipe fittings is crucial to the overall performance, durability, and safety of a piping system. The choice of material depends on various factors, including the nature of the fluid being transported, operating temperatures and pressures, environmental conditions, and industry-specific regulations. Let's explore the common materials used in pipe fittings and the considerations that go into material selection:
1. PVC (Polyvinyl Chloride): Widely used in low-pressure applications, particularly in residential and commercial plumbing. PVC is lightweight, corrosion-resistant, and cost-effective.
2. CPVC (Chlorinated Polyvinyl Chloride): Similar to PVC but can withstand higher temperatures, making it suitable for hot water systems.
3. Copper: Known for its excellent corrosion resistance and heat transfer properties. Commonly used in residential plumbing and HVAC systems.
4. Steel: Available in various grades, including stainless steel and carbon steel. Steel fittings are strong and can withstand high pressures and temperatures, making them ideal for industrial applications.
5. Brass: Offers good corrosion resistance and is often used in valves and fittings for water supply systems.
6. Cast Iron: Durable and noise-reducing, often used in soil and waste pipelines.
7. ABS (Acrylonitrile Butadiene Styrene): Used in drain, waste, and vent (DWV) systems due to its impact resistance and ability to withstand low temperatures.
8. HDPE (High-Density Polyethylene): Flexible and corrosion-resistant, often used in gas distribution and water mains.
It's crucial that the material of the fitting is compatible with the pipe material. Using incompatible materials can lead to corrosion, leaks, or system failure. For example, copper fittings are typically used with copper pipes, while PVC fittings are used with PVC pipes. In cases where different materials need to be joined, special transition fittings or dielectric unions may be required to prevent galvanic corrosion.
1. Chemical Compatibility: The material must be resistant to the chemicals in the fluid being transported.
2. Temperature Range: The fitting material should withstand the maximum and minimum temperatures of the system.
3. Pressure Rating: The material must be able to handle the system's operating pressure.
4. Corrosion Resistance: In corrosive environments, materials like stainless steel or certain plastics may be preferred.
5. Cost: While initial cost is a factor, the total lifecycle cost, including maintenance and replacement, should be considered.
6. Regulations and Standards: Certain industries have specific requirements for materials used in piping systems.
7. Weight: In some applications, lighter materials like plastics may be preferred for ease of installation and reduced structural load.
8. Thermal Expansion: The material's coefficient of thermal expansion should be considered, especially in systems with significant temperature fluctuations.
Selecting the appropriate material for pipe fittings is critical to ensuring the longevity, safety, and efficiency of a piping system. As we delve into specific types of pipe fittings in the next section, keep in mind that each type may be available in various materials, allowing for customization to meet the unique needs of different applications.

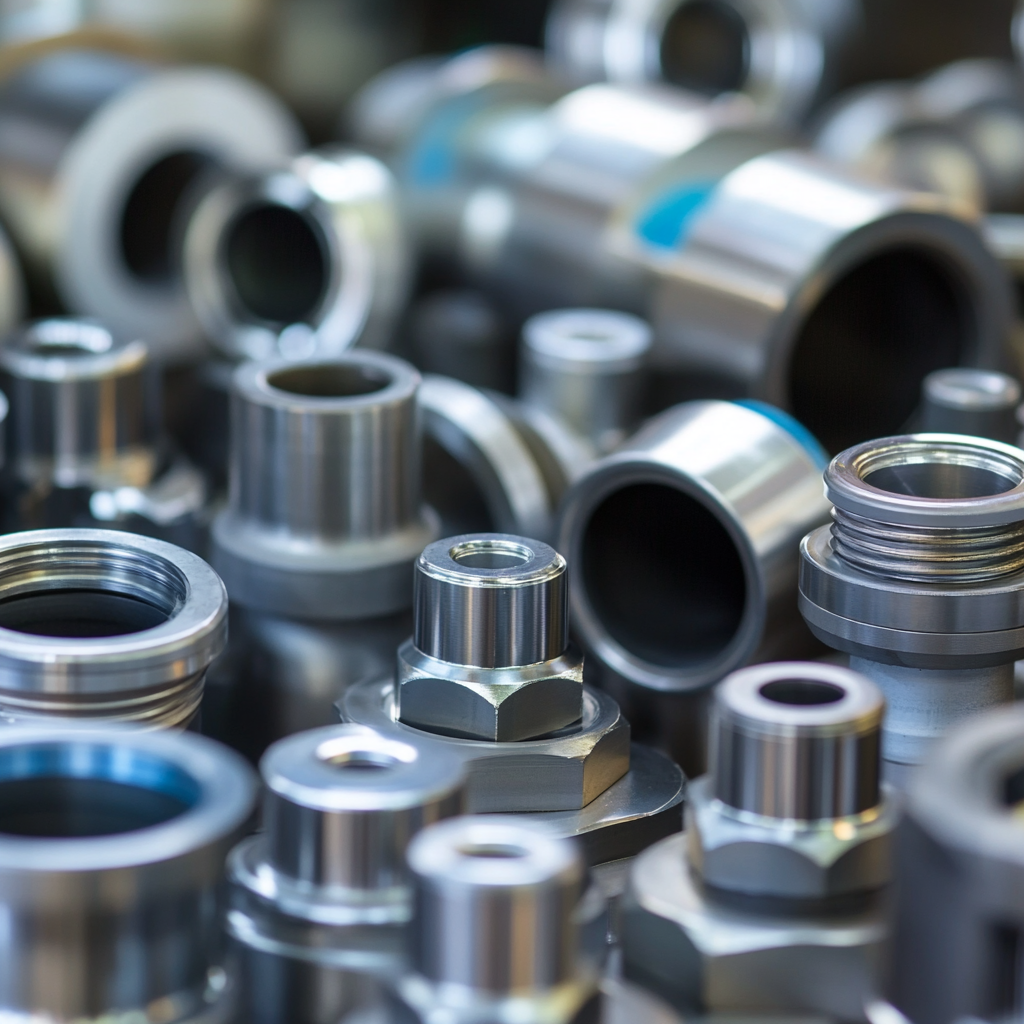

Pipe fittings come in a wide variety of types, each designed for specific functions within a piping system. Understanding these different types is crucial for selecting the right fitting for any given application. Let's explore some of the most common and important types of pipe fittings:
Elbow fittings are used to change the direction of flow between two pipes. They are one of the most common types of fittings in plumbing and piping systems.
1. 45-degree and 90-degree elbows: These are the most common types of elbows.
- 90-degree elbows make a right-angle turn and are used when a sharp change in direction is needed.
- 45-degree elbows provide a more gradual change in direction, which can help reduce turbulence and pressure loss.
2. Applications and uses:
- Residential plumbing: Connecting pipes around corners in walls or under sinks.
- Industrial piping: Navigating complex pipe layouts in factories or refineries.
- HVAC systems: Routing ductwork around structural elements.
Tee fittings have one inlet and two outlets, typically arranged in a T-shape. They are used to combine or split flow in piping systems.
1. Equal and unequal tees:
- Equal tees have all ports of the same size.
- Unequal tees (also called reducing tees) have one port of a different size, usually smaller than the main run.
2. Diverter tees:
These specialized tees are used in hydronic heating systems to redirect a portion of the flow.
3. Common applications:
- Plumbing systems: Branching off supply lines to multiple fixtures.
- Fire sprinkler systems: Distributing water to multiple sprinkler heads.
- Industrial processes: Combining or separating fluid flows.
Reducer fittings are used to join pipes of different diameters, allowing for changes in pipe size within a system.
1. Concentric reducers:
These reducers have a symmetrical cone shape, with the centerline of both ends aligned.
2. Eccentric reducers:
These have one flat side, with the smaller end offset from the centerline of the larger end.
3. Uses in flow size modification:
- Pump connections: Matching pump outlet sizes to system pipe sizes.
- Process piping: Transitioning between different pipe sizes for flow control or to accommodate equipment connections.
- Ventilation systems: Adapting between different duct sizes.
Cap fittings are used to seal the end of a pipe, either permanently or temporarily.
1. Purpose in terminating pipes:
- Sealing off unused pipe ends in a system.
- Pressure testing of piping systems.
- Protecting pipe ends during construction or shipping.
2. Temporary vs. permanent use:
- Temporary caps may be plastic or rubber, easily removable for future system expansion.
- Permanent caps are typically made of the same material as the pipe and may be welded or solvent-welded in place.
1. Couplings: Used to join two pipes of the same diameter.
2. Unions: Similar to couplings but allow for easy future disconnection.
3. Adapters: Used to join pipes of different materials or thread types.
4. Crosses: Have four openings and are used where four pipes converge.
5. Nipples: Short pipe segments used to connect fittings.
6. Valves: While often considered separate, valves are technically fittings that control flow.
7. Plugs: Male-threaded fittings used to seal off female-threaded pipe ends.
Each of these fitting types plays a crucial role in creating functional and efficient piping systems. The choice of fitting depends on the specific requirements of the system, including flow direction changes, size modifications, and flow control needs. In the next section, we'll discuss how to select the right fitting for a given application.
Selecting the appropriate pipe fitting is crucial for the safety, efficiency, and longevity of any piping system. Several factors need to be considered to ensure the right fitting is chosen for each specific application. Let's explore the key selection criteria for pipe fittings:
The fitting material must be compatible with the pipe material to prevent corrosion, leaks, or system failure.
- Metal-to-metal connections: Consider galvanic corrosion when joining dissimilar metals.
- Plastic-to-metal connections: May require special transition fittings or adapters.
- Plastic-to-plastic connections: Ensure chemical compatibility, especially with different types of plastics.
Proper sizing is critical for maintaining flow rates and preventing pressure losses.
- Nominal pipe size (NPS): Ensure the fitting matches the NPS of the pipes being connected.
- Inside diameter (ID) and outside diameter (OD): Consider these measurements, especially when dealing with different pipe schedules.
- Flow requirements: Select fittings that don't unnecessarily restrict flow or create turbulence.
Fittings must be able to withstand the system's operating conditions.
- Working pressure: Choose fittings rated for the maximum pressure the system will experience.
- Temperature range: Ensure the fitting can handle both the highest and lowest temperatures in the system.
- Combined effects: Consider how pressure ratings change at different temperatures.
Different connection methods are suitable for various applications.
- Threaded connections: Common in smaller diameter pipes, available in NPT (National Pipe Thread) or BSP (British Standard Pipe) standards.
- Welded connections: Provide a strong, permanent joint, often used in high-pressure or high-temperature applications.
- Solvent-welded connections: Used for certain plastic pipes and fittings.
- Compression fittings: Allow for easy assembly and disassembly, often used in maintenance-heavy areas.
- Flanged connections: Used for larger pipes and where frequent disassembly may be required.
Adherence to relevant standards and codes is crucial for safety and compliance.
- ASME B16 standards: Cover dimensions and ratings for various types of fittings.
- ASTM standards: Define material specifications and testing methods.
- Industry-specific codes: Such as those from API (American Petroleum Institute) for oil and gas applications.
- Local building codes: May dictate specific requirements for plumbing and piping systems.
Additional Considerations:
- Corrosion resistance: Consider the environment in which the fitting will be used.
- Cost: Balance initial costs with long-term durability and maintenance requirements.
- Availability: Consider the ease of obtaining replacement fittings for future maintenance.
- Installation requirements: Factor in the tools and skills needed for proper installation.
- Flow characteristics: Some fittings, like smooth-bore elbows, offer better flow characteristics than others.
By carefully considering these selection criteria, engineers and plumbers can ensure that they choose the most appropriate fittings for each specific application. This not only enhances the performance and efficiency of the piping system but also contributes to its safety and longevity.
Proper installation and regular maintenance of pipe fittings are crucial for ensuring the longevity, efficiency, and safety of any piping system. Even the highest quality fittings can fail if not installed correctly or maintained properly. Let's explore the key aspects of installation and maintenance for pipe fittings:
1. Threaded Connections:
- Clean threads thoroughly before assembly.
- Use appropriate thread sealant or tape to ensure a leak-free connection.
- Avoid over-tightening, which can damage threads or crack fittings.
2. Welded Connections:
- Ensure proper preparation of pipe ends and fitting surfaces.
- Use appropriate welding techniques and materials based on the fitting and pipe materials.
- Follow proper cooling and post-weld heat treatment procedures when required.
3. Solvent-Welded Connections (for plastic pipes):
- Clean and dry surfaces thoroughly before applying solvent.
- Apply solvent evenly and assemble quickly before it dries.
- Allow proper curing time before pressurizing the system.
4. Compression Fittings:
- Cut pipe ends squarely and remove any burrs.
- Insert the pipe fully into the fitting and tighten the nut to the manufacturer's specifications.
5. Flanged Connections:
- Align flanges properly and use appropriate gaskets.
- Tighten bolts in a star pattern to ensure even pressure distribution.
- Pipe cutters or saws
- Threading dies for creating threads on pipes
- Wrenches (pipe wrenches, adjustable wrenches, torque wrenches)
- Welding equipment (for welded connections)
- Solvent applicators (for plastic pipe connections)
- Flange alignment tools
- Leak detection equipment
- Personal protective equipment (PPE) such as gloves, safety glasses, and appropriate clothing
1. Regular Inspections:
- Conduct visual inspections for signs of corrosion, wear, or damage.
- Check for leaks, especially at joints and connection points.
- Monitor for any changes in system performance that could indicate fitting issues.
2. Cleaning:
- Remove any buildup or debris that could affect fitting performance.
- Use appropriate cleaning methods based on the fitting material and system contents.
3. Lubrication:
- For certain types of fittings (e.g., valves), regular lubrication may be necessary.
- Use lubricants compatible with the fitting material and system contents.
4. Replacement:
- Replace fittings showing signs of significant wear or damage.
- Keep an inventory of commonly used fittings for quick replacements when needed.
5. Documentation:
- Maintain records of installation dates, maintenance activities, and any issues encountered.
1. Leaks:
- Check for proper tightening of connections.
- Inspect for damaged threads or sealing surfaces.
- Ensure appropriate use of thread sealants or gaskets.
2. Corrosion:
- Identify the cause (e.g., galvanic corrosion, chemical attack).
- Consider upgrading to more corrosion-resistant materials if recurring.
3. Pressure Drops:
- Look for blockages or restrictions in fittings.
- Ensure fittings are properly sized for the system's flow requirements.
4. Vibration Issues:
- Check for loose connections.
- Consider adding supports or vibration dampeners if necessary.
5. Cracking or Failure:
- Investigate for over-tightening, over-pressurization, or incompatible materials.
- Analyze system design to prevent recurrence.
Proper installation and maintenance of pipe fittings are essential for the overall performance and longevity of piping systems. By following correct installation procedures, using appropriate tools, conducting regular maintenance, and promptly addressing any issues, the reliability and efficiency of the system can be significantly enhanced. In the next section, we'll explore the applications of pipe fittings in various industries, highlighting how different sectors utilize these crucial components.
Pipe fittings play crucial roles across a wide range of industries, each with its unique requirements and challenges. Let's explore how pipe fittings are applied in various industrial sectors:
In the petroleum industry, pipe fittings are essential components in exploration, production, refining, and distribution processes.
- High-pressure fittings: Used in drilling operations and oil extraction.
- Corrosion-resistant fittings: Employed in offshore platforms and refineries to withstand harsh environments.
- Large diameter fittings: Utilized in pipeline systems for transporting crude oil and refined products.
Key fittings: Flanges, high-pressure elbows, and specialized valves are commonly used.
The chemical industry relies heavily on pipe fittings to handle a diverse range of corrosive and reactive substances.
- Corrosion-resistant materials: Fittings made from stainless steel, special alloys, or lined with PTFE are often used.
- Sanitary fittings: Employed in pharmaceutical and food-grade chemical production.
- Specialized seals: Used to prevent leakage of hazardous chemicals.
Key fittings: Tees for mixing processes, reducers for reactor connections, and specialized valves for precise flow control.
In power plants, pipe fittings are crucial for steam systems, cooling water circuits, and fuel delivery.
- High-temperature fittings: Used in steam lines and boiler systems.
- Large diameter fittings: Employed in cooling water systems.
- Precision fittings: Utilized in fuel delivery systems for gas turbines.
Key fittings: Steam traps, high-pressure elbows, and expansion joints to accommodate thermal changes.
The gas industry uses pipe fittings in extraction, processing, and distribution networks.
- High-pressure fittings: Used in gas extraction and long-distance transmission pipelines.
- Specialized valves: Employed for pressure regulation and emergency shutoff.
- Corrosion-resistant fittings: Utilized in gas processing plants.
Key fittings: Ball valves, tees for branch connections, and reducers for pressure regulation stations.
In metallurgical processes, pipe fittings must withstand extreme temperatures and abrasive materials.
- Heat-resistant fittings: Used in smelting and casting operations.
- Abrasion-resistant fittings: Employed in slurry transport systems.
- Customized fittings: Utilized in specialized metallurgical processes.
Key fittings: Wear-resistant elbows, Y-strainers to remove impurities, and high-temperature valves.
Shipbuilding requires pipe fittings that can withstand marine environments and conform to maritime regulations.
- Corrosion-resistant fittings: Used in seawater systems.
- Compact fittings: Employed in tight spaces within ship structures.
- Fire-safe fittings: Utilized in fuel and hydraulic systems.
Key fittings: Quick-connect couplings, specialized elbows for tight bends, and marine-grade valves.
In the construction industry, pipe fittings are used in plumbing, HVAC, and fire protection systems.
- Plastic fittings: Commonly used in residential plumbing.
- Grooved fittings: Employed in commercial fire sprinkler systems.
- Insulated fittings: Utilized in HVAC systems.
Key fittings: PVC elbows and tees for plumbing, grooved couplings for sprinkler systems, and threaded adapters for equipment connections.
The oil industry, overlapping with petroleum, uses pipe fittings in exploration, production, and refining processes.
- High-pressure and high-temperature fittings: Used in oil wells and refineries.
- Large diameter fittings: Employed in storage tank connections and transfer lines.
- Specialized fittings: Utilized in offshore oil platforms.
Key fittings: Hammer unions for quick assembly/disassembly, swivel joints for flexible connections, and large diameter valves for storage systems.
Pipe fittings also find applications in industries such as water treatment, pulp and paper, and food processing, each with its specific requirements for materials and designs.
In all these industries, the selection of appropriate pipe fittings is crucial for ensuring safety, efficiency, and compliance with industry-specific regulations. The harsh conditions, corrosive substances, and high pressures encountered in many of these applications underscore the importance of using high-quality, properly specified fittings. As technology advances, we can expect to see continued innovations in fitting design and materials to meet the evolving needs of these diverse industries.
As industries evolve and new technologies emerge, the pipe fitting sector is also experiencing significant advancements. These developments aim to enhance performance, increase safety, and improve sustainability. Let's explore some of the key trends shaping the future of pipe fittings:
1. Advanced Composites: New composite materials are being developed that offer superior strength, corrosion resistance, and lightweight properties compared to traditional metals.
2. Nano-engineered Coatings: These coatings can provide enhanced protection against corrosion, wear, and even microbial growth.
3. Self-healing Materials: Research is ongoing into materials that can automatically repair small cracks or damages, potentially increasing the lifespan of fittings.
4. 3D-Printed Fittings: Additive manufacturing technologies are enabling the production of complex, customized fittings with reduced waste and faster turnaround times.
1. Embedded Sensors: Fittings with built-in sensors can monitor pressure, temperature, flow rates, and even detect leaks in real-time.
2. Wireless Connectivity: IoT-enabled fittings can transmit data to central monitoring systems, allowing for predictive maintenance and improved system management.
3. Smart Valves: Automated valves that can be controlled remotely or respond automatically to changing system conditions.
4. Digital Twins: Virtual representations of piping systems, including fittings, that can simulate performance and predict potential issues.
1. Recyclable Materials: Increased focus on using materials that can be easily recycled at the end of their life cycle.
2. Energy-efficient Designs: Fittings designed to minimize pressure drops and improve overall system efficiency.
3. Water Conservation: Smart fittings in plumbing systems that can help reduce water waste.
4. Eco-friendly Manufacturing: Adoption of more sustainable production processes to reduce the environmental impact of fitting manufacturing.
These trends reflect the industry's response to growing demands for more efficient, reliable, and sustainable piping systems across all sectors. As these technologies mature, we can expect to see significant improvements in the performance, longevity, and environmental impact of pipe fittings.
Pipe fittings, though often overlooked, are fundamental components in the vast networks of pipes that underpin numerous industries and modern infrastructure. From the simple elbow joint in household plumbing to high-pressure fittings in oil refineries, these components play a crucial role in ensuring the safe, efficient, and reliable transport of fluids and gases.
Throughout this article, we've explored the diverse world of pipe fittings, including:
1. The various types of fittings, such as elbows, tees, reducers, and caps, each serving specific functions in piping systems.
2. The range of materials used in fitting manufacturing, from common plastics to specialized alloys, each chosen to meet specific application requirements.
3. The critical factors to consider when selecting pipe fittings, including material compatibility, size, pressure ratings, and industry standards.
4. The importance of proper installation and maintenance in ensuring the longevity and performance of piping systems.
5. The wide-ranging applications of pipe fittings across industries such as petroleum, chemical processing, power generation, and construction.
As we look to the future, the pipe fitting industry continues to evolve, embracing new materials, smart technologies, and sustainable practices. These advancements promise to enhance the efficiency, safety, and environmental impact of piping systems across all sectors.
In conclusion, the selection, installation, and maintenance of appropriate pipe fittings are crucial aspects of any piping system design. Whether in a small residential plumbing project or a large industrial facility, the right fittings ensure that systems operate safely, efficiently, and reliably. As technology advances and industry needs evolve, pipe fittings will continue to play a vital role in connecting our world and facilitating the flow of resources that power our modern society.
