A weld neck flange, also known as a high-hub flange or tapered hub flange, is a type of pipe flange designed for high-pressure, high-stress applications. It is a circular fitting with a protruding rim around the circumference that includes drilled holes for bolting to another flange. The key distinguishing feature of a weld neck flange is its long, tapered hub that gradually transitions from the flange thickness to the pipe wall thickness.
This tapered design allows the flange to be butt-welded directly to the pipe, providing a strong, rigid connection that efficiently distributes stress loads. Weld neck flanges are the most robust and reliable type of flange, capable of handling extreme temperatures, high pressures, and significant mechanical forces. They are widely used in critical applications in industries such as oil and gas, chemical processing, and power generation.

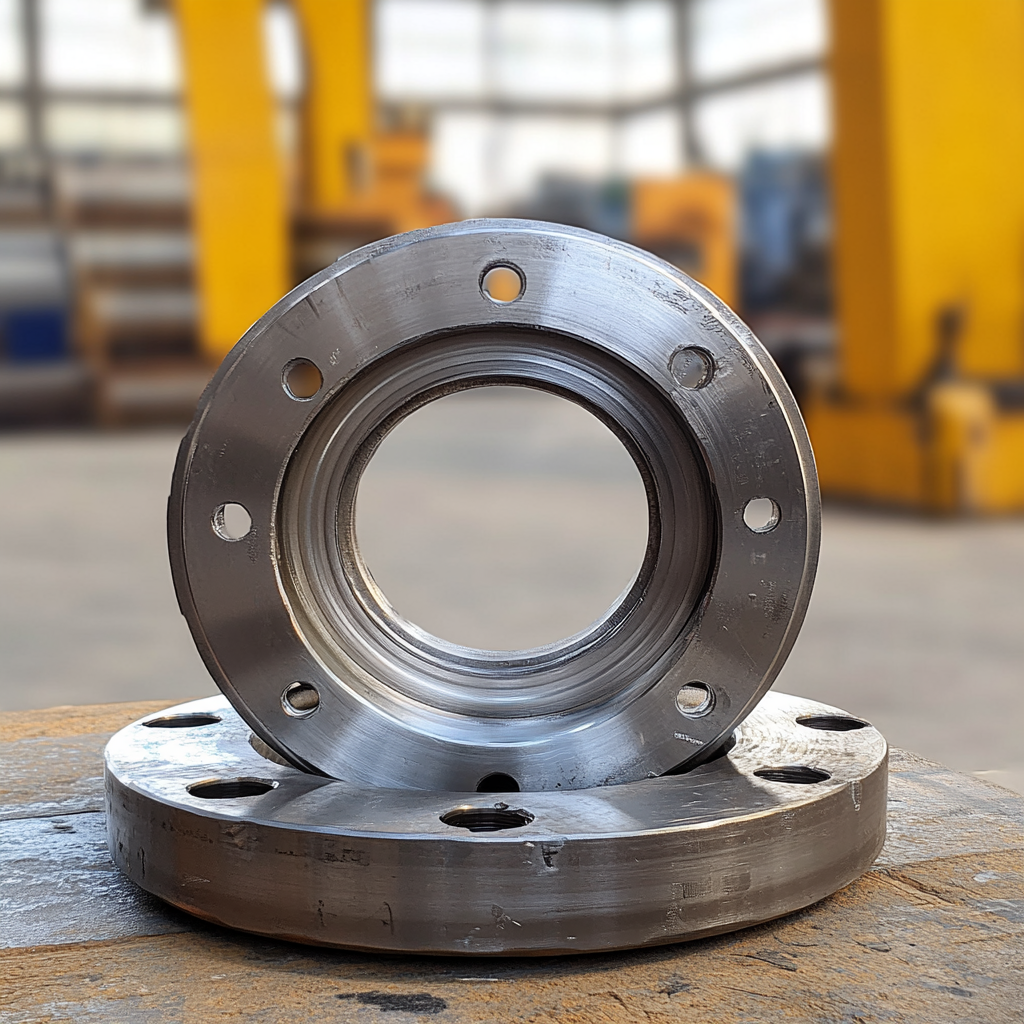

A weld neck flange is a type of pipe flange characterized by its long, tapered hub that extends from the flange face to the pipe. The flange consists of a circular fitting with a protruding rim around the circumference. This rim features evenly spaced drilled holes that allow the flange to be securely bolted to another flange, forming a strong, leak-tight connection.
The defining feature of a weld neck flange is its elongated hub, which gradually tapers from the thickness of the flange to the thickness of the pipe wall. This tapered design provides a smooth transition between the flange and the pipe, minimizing stress concentration points and reinforcing the connection. The hub is typically machined from a forging to ensure uniform grain structure and optimal strength.
There are two main designs of weld neck flanges:
1. Regular type: This is the standard design used for connecting pipes. The tapered hub is welded directly to the end of the pipe, creating a continuous, rigid structure.
2. Long type: Also known as long weld neck (LWN) flanges or nozzle flanges, this design features an extended neck that is longer than the regular type. Long weld neck flanges are typically used in process plants and pressure vessel applications, where they replace the need for a separate pipe stub between the vessel and the flange. However, they are not suitable for direct welding to pipes.
Weld neck flanges are manufactured by machining the flange and hub from a single forging. The forging process ensures a uniform grain structure and eliminates potential weak points that could arise from welding separate components together. After machining, the flange face is typically finished with a raised face (RF) or ring-type joint (RTJ) surface, depending on the intended application and sealing requirements.
The installation of weld neck flanges involves butt welding the tapered hub directly to the pipe end. This welding process requires precise alignment and a skilled welder to ensure a high-quality, full-penetration weld. The resulting connection is incredibly strong and resistant to leaks, making weld neck flanges the preferred choice for critical, high-pressure applications.
Weld neck flanges offer several significant advantages that make them the preferred choice for demanding applications:
1. Suitability for hostile environments: Weld neck flanges are designed to withstand extreme operating conditions, including high pressures, elevated temperatures, and significant mechanical stresses. The robust construction and seamless integration with the pipe enable weld neck flanges to perform reliably in challenging environments.
2. High pressure handling capability: Weld neck flanges have been successfully used in applications with pressures up to 5000 psi (344.7 bar). The strong, leak-tight connection provided by the butt-welded tapered hub allows weld neck flanges to safely contain and transmit high-pressure fluids.
3. Reinforcement and stress reduction: The tapered hub design of weld neck flanges provides inherent reinforcement to the pipe-to-flange connection. By gradually transitioning from the flange thickness to the pipe wall thickness, the hub minimizes stress concentration points and distributes loads evenly across the connection.
4. Smooth flow transition: The smooth, continuous bore of a weld neck flange minimizes flow disturbances and turbulence. This is particularly important in applications involving high-velocity fluids or erosive media, as it reduces the risk of premature wear and failure caused by flow-induced vibrations or erosion.
5. Superior strength and reliability: Weld neck flanges are widely recognized as the strongest and most reliable type of flange. The integral, forged construction and direct butt-welding to the pipe result in a robust, unified structure that can withstand significant mechanical loads and vibrations.
6. Stress relocation: The tapered hub of a weld neck flange effectively transfers stresses from the flange to the pipe. This stress relocation capability enhances the overall integrity of the piping system and reduces the likelihood of flange failure due to excessive loads or fatigue.
7. Excellent stress distribution: The gradual taper of the hub promotes uniform stress distribution across the flange-to-pipe connection. By avoiding abrupt changes in thickness, weld neck flanges minimize local stress concentrations and enhance the long-term durability of the joint.
8. Ease of inspection: Weld neck flanges are easier to radiograph and inspect for flaws compared to other flange types. The direct butt weld between the hub and pipe allows for clear, unobstructed imaging, enabling reliable detection of any weld defects or discontinuities.
These advantages collectively make weld neck flanges the preferred choice for critical applications where reliability, strength, and performance are paramount. While they may have a higher initial cost compared to other flange types, the long-term benefits of reduced maintenance, fewer failures, and extended service life often justify the investment in weld neck flanges.
Weld neck flanges are available in a wide range of materials to suit different application requirements. The choice of material depends on factors such as the operating temperature, pressure, corrosivity of the media, and the expected mechanical loads. The most common materials used for weld neck flanges are specified in ASTM (American Society for Testing and Materials) and ASME (American Society of Mechanical Engineers) standards.
The table below provides an overview of the common materials used for weld neck flanges, along with their key characteristics and applications:
Material | Standard | Characteristics | Typical Applications |
Carbon Steel | ASTM A105 | Good strength and toughness | General-purpose, low-temperature services |
Alloy Steel | ASTM A182 F11 | Improved strength and creep resistance | High-temperature, high-pressure applications |
ASTM A182 F22 | Enhanced corrosion and oxidation resistance | High-temperature, mildly corrosive environments | |
Stainless Steel | ASTM A182 F304 | Excellent corrosion resistance | Chemical processing, food and beverage, pharmaceuticals |
ASTM A182 F304L | Low carbon version of F304 | Improved weldability and corrosion resistance | |
ASTM A182 F316 | Improved corrosion resistance over F304 | Increased resistance to chlorides and acids | |
ASTM A182 F316L | Low carbon version of F316 | Improved weldability and corrosion resistance | |
Nickel Alloys | Inconel 600 | High strength and corrosion resistance | Extreme temperatures, highly corrosive environments |
Inconel 625 | Excellent corrosion and oxidation resistance | Seawater, acidic, and high-temperature applications | |
Hastelloy C22 | Outstanding resistance to pitting and crevice corrosion | Severe corrosive environments, chemical processing | |
Hastelloy C276 | Exceptional resistance to various corrosive media | Harsh chemical and petrochemical applications |
These materials cover a broad spectrum of properties and are suitable for a wide range of industries and applications. Carbon steel flanges, such as ASTM A105, are commonly used for general-purpose, low-temperature services. Alloy steel flanges, like ASTM A182 F11 and F22, offer improved strength and corrosion resistance for high-temperature and mildly corrosive environments.
Stainless steel flanges, including ASTM A182 F304, F304L, F316, and F316L, provide excellent corrosion resistance and are widely used in chemical processing, food and beverage, and pharmaceutical industries. The low-carbon grades (F304L and F316L) offer improved weldability and resistance to intergranular corrosion.
Nickel alloy flanges, such as Inconel and Hastelloy grades, are designed for the most demanding applications involving extreme temperatures and highly corrosive media. These materials exhibit exceptional strength, oxidation resistance, and resistance to various forms of corrosion, making them suitable for use in harsh environments found in chemical processing, offshore oil and gas, and power generation industries.
When selecting the material for a weld neck flange, it is essential to consider the specific requirements of the application, including the temperature range, pressure rating, corrosivity of the media, and the compatibility with the adjoining pipe material. Consulting material specialists and referring to relevant standards and specifications can help ensure the optimal material choice for a given application.
Weld neck flanges are available in a wide range of sizes and specifications to accommodate various piping systems and applications. The dimensions and specifications are standardized by organizations such as ASME (American Society of Mechanical Engineers), BS (British Standards), and DIN (Deutsches Institut für Normung).
The most common outer diameters for weld neck flanges range from 1/2" to 24", with some special larger sizes available up to 60". The table below lists the standard outer diameters for weld neck flanges according to ASME B16.5:
Nominal Pipe Size (NPS) | Outer Diameter (inches) |
1 / 2 | 3.5 |
3 / 4 | 3.88 |
1 | 4.25 |
1 1/2 | 5 |
2 | 6 |
3 | 7.5 |
4 | 9 |
6 | 11 |
8 | 13.5 |
10 | 16 |
12 | 19 |
14 | 21 |
16 | 23.5 |
18 | 25 |
20 | 27.5 |
24 | 32 |
Weld neck flanges are available in various pressure classes, which determine their thickness and bolting dimensions. The most common class ratings according to ASME B16.5 are:
Class Rating | Pressure Range (psi) |
150 | 285 - 740 |
300 | 740 - 1480 |
400 | 990 - 1975 |
600 | 1480 - 2965 |
900 | 2220 - 4450 |
1500 | 3705 - 7410 |
2500 | 6170 - 12340 |
The pressure range for each class varies depending on the material and temperature. Flanges are also available in PN (Nominal Pressure) ratings according to DIN standards, ranging from PN2.5 to PN250.
Weld neck flanges are commonly available with two face types:
1. Raised Face (RF): This is the most common face type, featuring a raised surface that concentrates the gasket load and improves sealing performance. RF flanges are suitable for most general-purpose applications.
2. Ring Type Joint (RTJ): RTJ flanges have a grooved face that accommodates a metal ring gasket. They are designed for high-pressure, high-temperature applications and provide superior sealing performance compared to RF flanges.
The wall thickness and bore diameter of a weld neck flange depend on the nominal pipe size and the applicable standard. The table below shows the wall thickness and bore diameter for selected NPS sizes according to ASME B16.5:
NPS | Wall Thickness (inches) | Bore Diameter (inches) |
2 | 0.218 | 2.067 |
4 | 0.337 | 4.026 |
6 | 0.432 | 6.065 |
8 | 0.5 | 7.981 |
10 | 0.593 | 10.02 |
12 | 0.687 | 11.938 |
16 | 0.843 | 15 |
20 | 1.031 | 19 |
24 | 1.218 | 23 |
Weld neck flange dimensions and specifications are covered by various international standards, including:
- ASME B16.5: Pipe Flanges and Flanged Fittings NPS 1/2 Through NPS 24 Metric/Inch Standard
- ASME B16.47: Large Diameter Steel Flanges NPS 26 Through NPS 60 Metric/Inch Standard
- BS EN 1092-1: Flanges and their joints. Circular flanges for pipes, valves, fittings, and accessories, PN designated. Steel flanges
- DIN EN 1092-1: Flanges and their joints - Circular flanges for pipes, valves, fittings and accessories, PN designated - Part 1: Steel flanges
These standards provide comprehensive tables and specifications for weld neck flanges, covering dimensions, tolerances, materials, testing, and marking requirements. Consulting the relevant standard is essential when specifying or selecting weld neck flanges for a particular application.
While the standard weld neck flange is the most common type, there are two notable variants designed for specific applications:
Also known as nozzle flanges or "long neck" flanges, LWN flanges are specifically designed for use in pressure vessels and tank fabrication. They feature an extended neck that is longer than the standard weld neck flange, allowing them to replace the combination of a regular weld neck flange and a pipe stub.
Key characteristics of LWN flanges include:
- One-piece construction, eliminating the need for a separate pipe stub and the associated welding
- Customizable length and bore size to suit specific vessel or tank requirements
- Square cut end instead of the typical weld bevel, enabling direct welding to the vessel or tank wall
- Slightly radiused transition between the flange base and the neck to reduce stress concentration
LWN flanges offer several advantages in pressure vessel and tank applications. The one-piece design simplifies the fabrication process and reduces the number of welds required, minimizing potential leak points. The customizable length and bore size allow for optimal integration with the vessel or tank design, while the radiused transition enhances the structural integrity of the connection.
When specifying LWN flanges, it is essential to consider the specific requirements of the application, including the operating pressure, temperature, and media. Consultation with engineering and design specialists can help ensure the selection of the most appropriate LWN flange configuration for the intended use.
Reducing weld neck flanges, also known as reducer flanges, are designed to connect pipes of different sizes. They feature a tapered neck that transitions from the flange bore to a smaller pipe diameter, eliminating the need for a separate reducer fitting.
Key characteristics of reducing weld neck flanges include:
- Integral reduction in bore size from the flange to the pipe
- Streamlined flow path, minimizing turbulence and pressure drop
- Reduced overall length compared to a standard weld neck flange and a separate reducer
- Availability in a range of size combinations to suit various piping system requirements
Reducing weld neck flanges offer several benefits in piping system design. By combining the functions of a flange and a reducer into a single component, they simplify the piping layout and reduce the number of potential leak points. The streamlined flow path helps to minimize flow disturbances and associated pressure losses, contributing to improved system efficiency.
When selecting a reducing weld neck flange, it is important to consider the size and schedule of both the connecting pipe and the flange, as well as the required pressure rating and material compatibility. Consulting piping system design standards and working with experienced suppliers can help ensure the specification of the most suitable reducing weld neck flange for the application.
Both long weld neck flanges and reducing weld neck flanges are variants that extend the versatility and application range of weld neck flanges. By understanding the unique features and benefits of these variants, designers and engineers can optimize piping system layouts and vessel connections to achieve improved performance, reliability, and efficiency.
Weld neck flanges are widely used in various industries and applications where superior strength, reliability, and performance are critical. Some of the key application areas for weld neck flanges include:
In the petroleum and chemical processing industries, weld neck flanges are extensively used in piping systems that handle high-pressure, high-temperature, and corrosive fluids. The robust construction and leak-tight sealing of weld neck flanges make them ideal for applications such as:
- Refinery piping systems
- Chemical reactor connections
- Heat exchanger and vessel nozzles
- High-pressure process lines
The excellent stress distribution and fatigue resistance of weld neck flanges ensure long-term reliability and safety in these demanding environments.

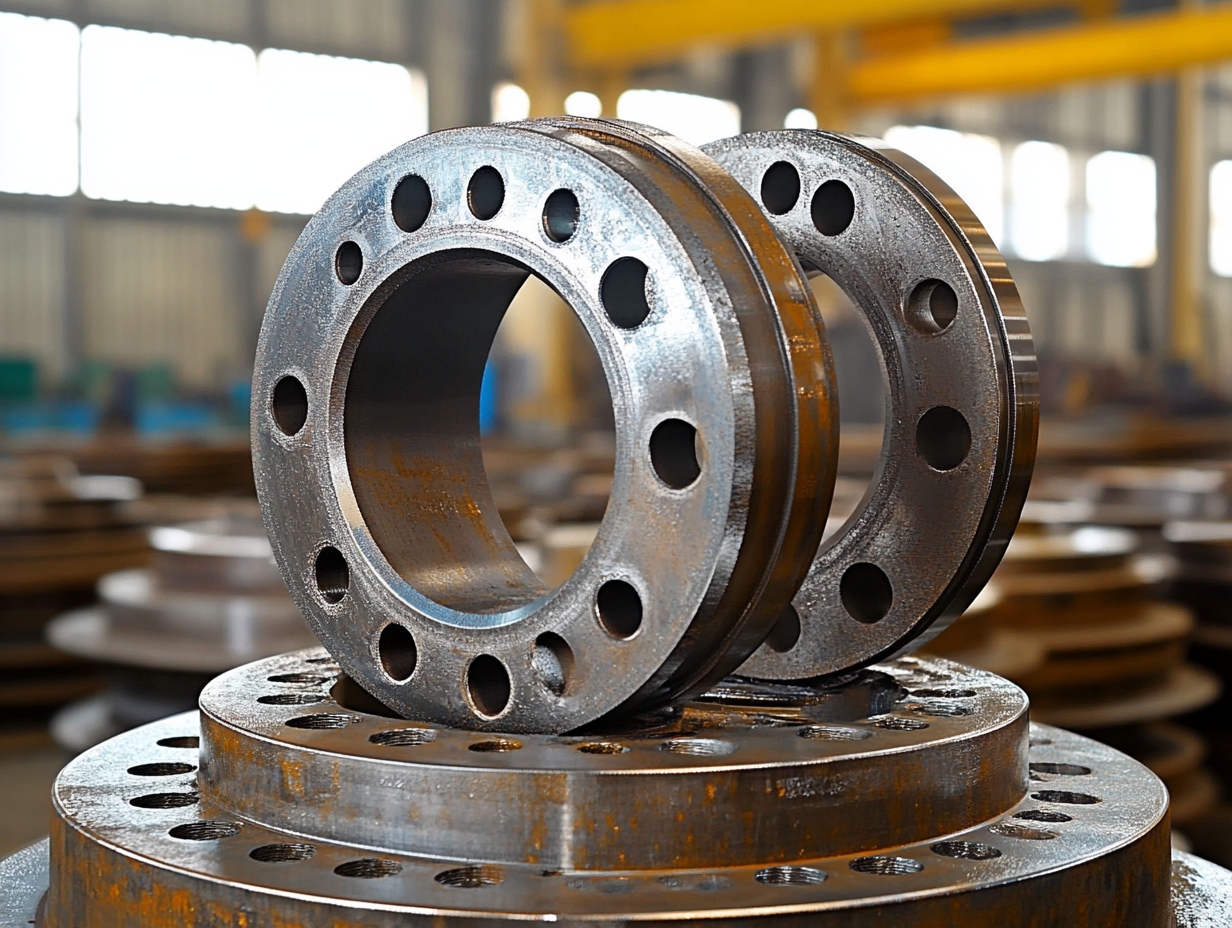

Weld neck flanges are a staple in the oil and gas industry, where they are used in both upstream and downstream applications. Some typical uses include:
- Wellhead and Christmas tree connections
- Manifold and gathering system piping
- High-pressure transmission lines
- Subsea pipelines and risers
The ability of weld neck flanges to withstand extreme pressures, temperatures, and mechanical stresses makes them essential components in the harsh operating conditions encountered in the oil and gas sector.
In any application involving high pressures or high temperatures, weld neck flanges are the preferred choice. Their integral design and robust construction provide the necessary strength and integrity to safely contain and transport high-energy fluids. Examples of such applications include:
- Steam and power generation systems
- High-pressure hydraulic lines
- Industrial boilers and heat exchangers
- Nuclear power plant piping
The use of weld neck flanges in these critical systems helps to minimize the risk of leaks, failures, and associated safety hazards.
Weld neck flanges are extensively used in critical piping systems where reliability and performance are of utmost importance. These applications often involve high vibration, cyclic loading, and severe service conditions. Examples include:
- Pump and compressor discharge lines
- Turbine and engine connections
- Reciprocating machinery piping
- Emergency shutdown (ESD) and pressure relief systems
The inherent strength and vibration resistance of weld neck flanges make them the ideal choice for these critical piping systems, ensuring safe and uninterrupted operation.
In any application where superior strength and reliability are paramount, weld neck flanges are the go-to solution. Their ability to redistribute stresses, resist fatigue, and maintain leak-tight sealing under extreme conditions makes them indispensable in industries such as:
- Aerospace and defense
- Cryogenic and low-temperature services
- High-pressure gas storage and transportation
- Offshore and marine applications
By specifying weld neck flanges in these demanding applications, engineers can ensure the highest levels of safety, performance, and long-term reliability.
The wide range of applications for weld neck flanges highlights their versatility and superior performance characteristics. Whether in the oil and gas sector, chemical processing, power generation, or any other industry requiring robust and reliable piping connections, weld neck flanges have proven their worth as the flange of choice for critical services.
Proper installation is crucial to ensure the optimal performance and reliability of weld neck flanges. The installation process involves butt welding the flange to the pipe end, following specific welding procedures and inspection requirements.
Weld neck flanges are designed to be butt welded directly to the pipe end. The butt welding process involves the following steps:
1. Preparation: The pipe end is beveled to match the weld bevel angle of the flange. The flange bore and pipe end are cleaned to remove any contaminants that could affect weld quality.
2. Alignment: The flange is positioned on the pipe end, ensuring precise alignment between the flange bore and the pipe centerline. Proper alignment is critical to avoid excessive stresses and ensure a uniform weld.
3. Tack Welding: The flange is tack welded to the pipe at several points around the circumference to maintain alignment during the main welding process.
4. Root Pass: The root pass is the first layer of weld metal deposited in the joint. It is critical to achieve full penetration and avoid any defects that could compromise the integrity of the connection.
5. Filler Passes: After the root pass, multiple filler passes are applied to build up the weld to the required thickness. The number of filler passes depends on the pipe and flange thickness and the welding process used.
6. Cap Pass: The final pass, known as the cap pass, is applied to achieve a smooth and uniform weld profile. The cap pass is often performed with a smaller diameter welding electrode to improve the weld appearance and reduce the risk of defects.
To ensure the integrity and reliability of the welded connection, it is essential to follow proper welding procedures and perform thorough inspection. Key considerations include:
1. Welding Procedure Specification (WPS): The WPS is a document that outlines the welding parameters, techniques, and consumables to be used for a specific application. It is developed based on the base materials, thickness, and service conditions and is qualified through testing.
2. Welder Qualification: Welders performing the installation must be qualified to the specific WPS being used. Qualification involves demonstrating the ability to produce welds that meet the required quality standards.
3. Non-Destructive Testing (NDT): After welding, the connection is subjected to NDT to verify the integrity of the weld. Common NDT methods for weld neck flange installations include:
- Visual inspection: To check for surface defects, misalignment, and weld profile
- Liquid penetrant testing: To detect surface-breaking defects
- Radiographic testing: To identify internal defects such as porosity, inclusions, and lack of fusion
- Ultrasonic testing: To detect subsurface defects and measure weld thickness
4. Heat Treatment: In some cases, post-weld heat treatment (PWHT) may be required to relieve residual stresses and improve the mechanical properties of the welded connection. The need for PWHT depends on the materials, thickness, and service conditions.
Proper installation, welding, and inspection are critical to ensure that weld neck flanges perform as intended and provide long-term reliability in service. By following established welding procedures, employing qualified welders, and conducting thorough NDT, the integrity of the welded connection can be assured, minimizing the risk of leaks, failures, and safety hazards.
Weld neck flanges are the preferred choice for demanding applications that require optimal strength, reliability, and performance. Their unique design, featuring a tapered hub and smooth bore transition, provides superior stress distribution and minimizes the risk of leaks and failures. The ability of weld neck flanges to withstand high pressures, extreme temperatures, and severe mechanical loads makes them indispensable in critical service applications across various industries.
The benefits of weld neck flanges extend beyond their mechanical strength and integrity. The streamlined flow path minimizes turbulence and pressure drop, contributing to improved system efficiency. The leak-tight sealing and vibration resistance of weld neck flanges ensure safe and uninterrupted operation, reducing the risk of environmental and safety hazards.
While weld neck flanges may have a higher initial cost compared to other flange types, their long-term performance and reliability often justify the investment. The reduced maintenance requirements, extended service life, and minimized downtime associated with weld neck flanges contribute to lower overall lifecycle costs.
Weld neck flanges are available in a wide range of materials, sizes, and pressure ratings to suit diverse application requirements. From carbon steel and stainless steel to high-performance alloys, the material options cater to various service conditions, including corrosive environments, high temperatures, and cryogenic applications. The standardization of weld neck flange dimensions and specifications by global organizations such as ASME, BS, and DIN ensures consistent quality and interchangeability worldwide.
To fully realize the benefits of weld neck flanges, proper installation is crucial. The butt welding process requires skilled welders, adherence to qualified welding procedures, and thorough inspection to ensure the integrity of the welded connection. By following best practices in welding, non-destructive testing, and quality control, the performance and reliability of weld neck flanges can be maximized.
In conclusion, weld neck flanges offer unparalleled strength, reliability, and performance in demanding applications. Their superior mechanical properties, leak-tight sealing, and versatile options make them the flange of choice for critical services in the oil and gas, chemical processing, power generation, and other industries. While they may require a higher initial investment and careful installation, the long-term benefits of weld neck flanges in terms of safety, efficiency, and operational continuity are well worth the effort. By specifying weld neck flanges and ensuring proper installation, engineers and facility managers can enhance the reliability and performance of their piping systems, contributing to improved asset integrity and overall operational excellence.
